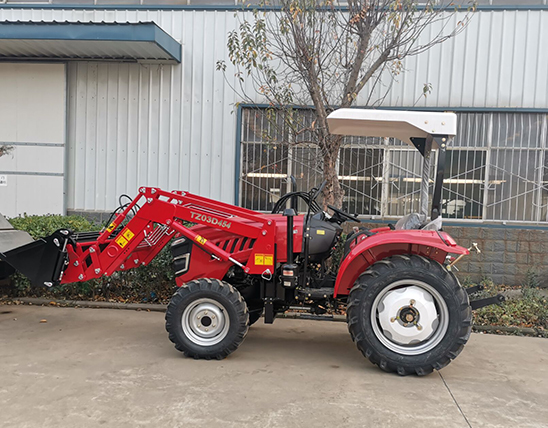

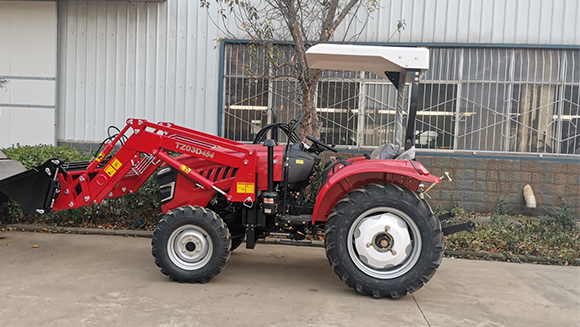

Chalion QA Series 45HP Wheeled Tractor
1) This Chalion QA Series 45HP Wheeled Tractor suitable for market demand at home and abroad;
2) F8+R8 shuttle shift, enhanced chassis;
3) These farm wheel tractors are reasonable gear distribution, reliable in performance;
4) Low fuel consumption and large torque reserve, dynamic economy;
5) Frame type cab, good sealing, driving safety and comfortable;
6) Multi-power output, good match with farm implements to meet the multiple requirements.
ProductsDescription
This Chalion QA Series 45HP Wheeled Tractor suitable for market demand at home and abroad, F8+R8 shuttle shift, enhanced chassis.
ProductsUse
Tractor for Farm usage. Equipped with various farm implements to help you do farm work, such as ploughing, planting, cultivating, etc.
Products Advantage
-
Equipped with international standard NTP 1/2 hydraulic output connectors, 1/2 way multi-valve and hydraulic pump with output flow of 35 l/m;
+ -
The gear configurations of F8+R2 makes that the velocity distribution is reasonable to meet different operating needs;
+ -
Optional single/double-acting clutches for different needs and operation; Special ceramic material for friction plates with high reliability as well as low use and maintenance cost.
+ -
Center console with simple structure, high cost efficiency and easy maintenance and an external differential lock is easy for maintenance;
+ -
Powered by 4-cylinders direct injection Laidong/Jiangdong engine, energy-saving, environmental protection, good stability and more advanced technology; it powered from 25HP to 40HP which can provide power up to 40HP and meet the Emission Standard of E3A and EPA Tire 4;
+ -
New designed front axle is adopted on 4WD tractor, mid hydraulic cylinder makes the structure easier and more reliable.The tie rod is canceled to provide higher clearance and better passing ability.
+
Products Parameters
| 45HP | ||||
|---|---|---|---|---|
| Model | QLN-454 | |||
| Engine | Rated power(kw) | 33.1 | ||
| Type | Vertical four cylinder, direct injection, four stroke, water-cooled | |||
| Rotation speed(r/min) | 2400 | |||
| Dimension | Wheel drive | 4WD | ||
| Minimum | 1625 | |||
| using weight (kg) | ||||
| Overall dimension(mm) | 3660*1585*1530(to steering wheel) | |||
| 3660*1585*2150(to muffler) | ||||
| Wheel tread(mm) | Front wheel | 1230 | ||
| Rear wheel | 1110～1400 | |||
| Wheelbase(mm) | 1820 | |||
| Minimum ground clearance(mm) | 280（lower edge of front drive axle） | |||
| Gearbox | 4*（2+1）shuttle shift | |||
| Tire | Front tire | 7.50-16 | ||
| Rear tire | 11.2-28 | |||
| Steering type | Hydraulic power steering | |||
| Working device | PTO shaft speed (r/min) | 540/720 or 540/1000 | ||
| Max lifting force(KN) | 10.5 | |||
| Suspension type | CategoryⅠ3-point linkage | |||
-
