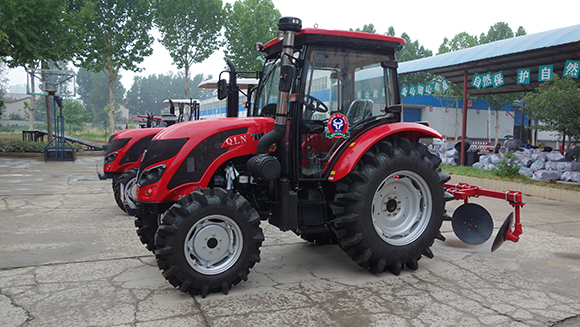

Chalion QB Series 55hp Wheeled Tractor
Chalion QB series QLN-554hp farm tractor is belong to middle horsepower, adopt YTO high fuel efficiency diesel engine, shuttle shift 12F+12R gear box, lower mounted fuel tank with large capacity, heavy chassis, fast operating speed.
Products Description
Chalion QB series(QLN-554 654 704 754) is belong to middle horsepower, adopt YTO high fuel efficiency diesel engine, shuttle shift 12F+12R gear box, lower mounted fuel tank with large capacity, heavy chassis, fast operating speed.
Products Advantage
-
YTO/YUCHAI Excellent four-cylinder direct injection diesel engine with high fuel efficiency and high torque output;
+ -
Hydraulic lifting device adopts force adjustment, position adjustment and individual control of force and position;
+ -
Dual action 11 -inch clutch for easy control, and reliable performance; Special ceramic material for friction plates with high reliability as well as low use and maintenance cost;
+ -
12F+12R shuttle -type gear shifting with quick forward and reverse has a variety of gear selections, and a reasonable velocity distribution;
+ -
New front axle is used on the four-wheel- drive model, which can provide you reliable steering performance in harsh and paddy environments with double steering cylinder and great water proofness.Meanwhile, it has a minimum turning radius of 3.3m to help you operate easily in small spaces；
+ -
Beautiful and elegant, new generation streamline shield, which meets the performance requirements of safety, anti-dust, noise reduction and cooling perfect.
+
Products Parameters
| 55HP | |||
|---|---|---|---|
| Model | QLN-554 | ||
| Engine | Rated Power(kw) | 40.4 | |
| Type | Direct-injection, water-cooled 4-cylinders diesel engine | ||
| Rotation Speed(r/min) | 2400 | ||
| Dimension | Wheel Drive | 4WD | |
| Minimum Using Weight(kg) | 2360 | ||
| Overall Dimension(mm) | 3980*1635*2400 | ||
| Wheel tread for Front Wheel(mm) | 1400 | ||
| Wheel tread for Rear Wheel(mm) | 1300(Adjustable) | ||
| Wheelbase(mm) | 2040 | ||
| Minimum Ground Clearance(mm) | 325 | ||
| Gear Box | 12F+12R | ||
| Front Tire | 8.3-20 | ||
| Rear Tire | 12.4-28 | ||
| Steering Type | Hydraulic power steering | ||
| Working Device | PTO Shaft Speed(r/min) | 540/760 | |
| Max lifting Force at 610mm (KN) | 11.8 | ||
| Max Traction (KN) | ≥14 | ||
| Suspension Type | 3 points linkage, CAT.2, | ||
| 65HP | |||
|---|---|---|---|
| Model | QLN-654 | ||
| Engine | Rated Power(kw) | 47.8 | |
| Type | Direct-injection, water-cooled 4-cylinders diesel engine | ||
| Rotation Speed(r/min) | 2400 | ||
| Dimension | Wheel Drive | 4WD | |
| Minimum Using Weight(kg) | 2360 | ||
| Overall Dimension(mm) | 3980*1635*2400 | ||
| Wheel tread for Front Wheel(mm) | 1400 | ||
| Wheel tread for Rear Wheel(mm) | 1300(Adjustable) | ||
| Wheelbase(mm) | 2040 | ||
| Minimum Ground Clearance(mm) | 325 | ||
| Gear Box | 12F+12R | ||
| Front Tire | 8.3-24 | ||
| Rear Tire | 12.4-28 | ||
| Steering Type | Hydraulic power steering | ||
| Working Device | PTO Shaft Speed(r/min) | 540/760 | |
| Max lifting Force at 610mm (KN) | 11.8 | ||
| Max Traction (KN) | ≥14.5 | ||
| Suspension Type | 3 points linkage, CAT.2, | ||
| 70HP | |||
|---|---|---|---|
| Model | QLN-704 | ||
| Engine | Rated Power(kw) | 51.47 | |
| Type | Direct-injection, water-cooled 4-cylinders diesel engine | ||
| Rotation Speed(r/min) | 2400 | ||
| Dimension | Wheel Drive | 4WD | |
| Minimum Using Weight(kg) | 1820 | ||
| Overall Dimension(mm) | 3980*1635*2400 | ||
| Wheel tread for Front Wheel(mm) | 1400 | ||
| Wheel tread for Rear Wheel(mm) | 1300(Adjustable) | ||
| Wheelbase(mm) | 2040 | ||
| Minimum Ground Clearance(mm) | 325 | ||
| Gear Box | 12F+12R | ||
| Front Tire | 8.3-24 | ||
| Rear Tire | 14.9-30 | ||
| Steering Type | Hydraulic power steering | ||
| Working Device | PTO Shaft Speed(r/min) | 540/760 | |
| Max lifting Force at 610mm (KN) | 13 | ||
| Max Traction (KN) | ≥15 | ||
| Suspension Type | 3 points linkage, CAT.2, | ||
| 75HP | |||
|---|---|---|---|
| Model | QLN-754 | ||
| Engine | Rated Power(kw) | 55.14 | |
| Type | Direct-injection, water-cooled 4-cylinders diesel engine | ||
| Rotation Speed(r/min) | 2400 | ||
| Dimension | Wheel Drive | 4WD | |
| Minimum Using Weight(kg) | 1820 | ||
| Overall Dimension(mm) | 3980*1635*2400 | ||
| Wheel tread for Front Wheel(mm) | 1400 | ||
| Wheel tread for Rear Wheel(mm) | 1300(Adjustable) | ||
| Wheelbase(mm) | 2040 | ||
| Minimum Ground Clearance(mm) | 325 | ||
| Gear Box | 12F+12R | ||
| Front Tire | 8.3-24 | ||
| Rear Tire | 14.9-30 | ||
| Steering Type | Hydraulic power steering | ||
| Working Device | PTO Shaft Speed(r/min) | 540/760 | |
| Max lifting Force at 610mm (KN) | 13 | ||
| Max Traction (KN) | ≥15.88 | ||
| Suspension Type | 3 points, CAT.2, | ||
| 80HP | |||
|---|---|---|---|
| Model | QLN-804C | ||
| Engine | Rated Power(kw) | 58.8 | |
| Type | Direct-injection, water-cooled 4-cylinders diesel engine | ||
| Rotation Speed(r/min) | 2400 | ||
| Dimension | Wheel Drive | 4WD | |
| Minimum Using Weight(kg) | 1820 | ||
| Overall Dimension(mm) | 3980*1635*2400 | ||
| Wheel tread for Front Wheel(mm) | 1400 | ||
| Wheel tread for Rear Wheel(mm) | 1300(Adjustable) | ||
| Wheelbase(mm) | 2040 | ||
| Minimum Ground Clearance(mm) | 325 | ||
| Gear Box | 12F+12R | ||
| Front Tire | 8.3-24 | ||
| Rear Tire | 14.9-30 | ||
| Steering Type | Hydraulic power steering | ||
| Working Device | PTO Shaft Speed(r/min) | 540/760 | |
| Max lifting Force at 610mm (KN) | 13 | ||
| Max Traction (KN) | ≥17.88 | ||
| Suspension Type | 3 points linkage, CAT.2, | ||
-
