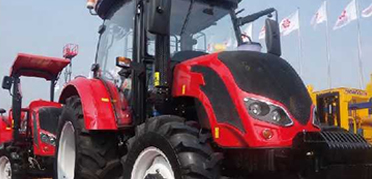

QP Series(150hp-180hp) Wheeled Tractor

QP series tractor(QLN-1504 1604 1804) are specialized products with excellent quality. Its user-friendly design and strictly inspection and manufacturing process will bring you comfortable driving experience.

info@qln-tractor.com 8618236900192

Products Description

QP series tractors (QLN-1504 1604 1804) are specialized products with excellent quality. Its user-friendly design and strictly inspection and manufacturing process will bring you comfortable driving experience.


Products Advantage



  • 6-cylinder turbocharge engine with strong power, high fuel efficiency, and high torque output;

    +
  • Hydraulic driving brake system and handle-manipulated stop braking system, high safety coefficient;

    +
  • YTO brand independent-operation, dual-action clutch with reliable performance, large torque reserve coefficient, and high transmission capacity;

    +
  • The use of flat floors, hanging pedals, side manipulation, 16+8 shuttle shift transmission, and various gear selections can provide a reasonable velocity distribution;

    +
  • ZF(Germany) front axle with advanced structure, high carrying ability, high ground clearance, easy operation, and other advantages suitable for operation under various working conditions;

    +
  • New-generation graceful and splendid streamline casing, meeting requirements for safety,dust-proof, noise reduction, and heat dissipation. Enclosed cab with heater, fan, air conditioner, and the sounding system is optional, which makes driving safer and more comfortable.

    +

Products Parameters

180HP
Model QLN-1804
Engine Rated Power(kw) 132.4
Type Direct-injection, water-cooled 6-cylinder diesel engine
Rotation Speed(r/min) 2300
Dimension Wheel Drive 4WD
Minimum Using Weight(kg) 5050
Overall Dimension(mm) 5060*2345*2995
Wheel tread for Front Wheel(mm) 1954
Wheel tread for Rear Wheel(mm) 1850(Adjustable)
Wheelbase(mm) 2543
Minimum Ground Clearance(mm) 395
Gear Box 16F+8R
Front Tire 14.9-26
Rear Tire 18.4-38
Steering Type Hydraulic power steering
Working Device PTO Shaft Speed(r/min) 540/1000
Max lifting Force at 610mm (KN) 31.78
Max Traction (KN) 30
Suspension Type 3 points linkage, CAT.2,
150HP
Model QLN-1504
Engine Rated Power(kw) 110.3
Type Direct-injection, water-cooled 6-cylinder diesel engine
Rotation Speed(r/min) 2300
Dimension Wheel Drive 4WD
Minimum Using Weight(kg) 5050
Overall Dimension(mm) 5060*2345*2995
Wheel tread for Front Wheel(mm) 1954
Wheel tread for Rear Wheel(mm) 1850(Adjustable)
Wheelbase(mm) 2543
Minimum Ground Clearance(mm) 395
Gear Box 16F+8R
Front Tire 14.9-26
Rear Tire 18.4-38
Steering Type Hydraulic power steering
Working Device PTO Shaft Speed(r/min) 540/1000
Max lifting Force at 610mm (KN) 28
Max Traction (KN) 35
Suspension Type 3 points linkage, CAT.2,
160HP
Model QLN-1604
Engine Rated Power(kw) 117
Type Direct-injection, water-cooled 6-cylinder diesel engine
Rotation Speed(r/min) 2300
Dimension Wheel Drive 4WD
Minimum Using Weight(kg) 5050
Overall Dimension(mm) 5060*2345*2995
Wheel tread for Front Wheel(mm) 1954
Wheel tread for Rear Wheel(mm) 1850(Adjustable)
Wheelbase(mm) 2543
Minimum Ground Clearance(mm) 395
Gear Box 16F+8R
Front Tire 14.9-26
Rear Tire 18.4-38
Steering Type Hydraulic power steering
Working Device PTO Shaft Speed(r/min) 540/1000
Max lifting Force at 610mm (KN) 26
Max Traction (KN) 30
Suspension Type 3 points linkage, CAT.3,
