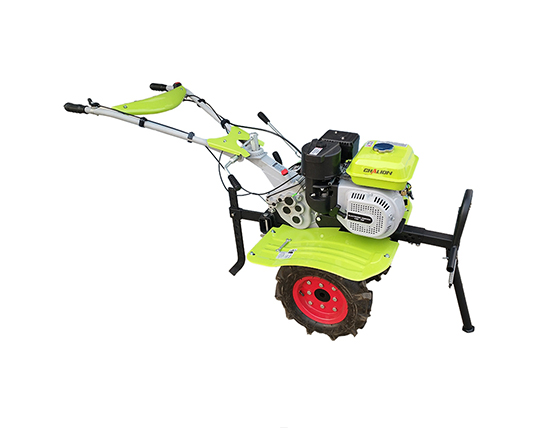

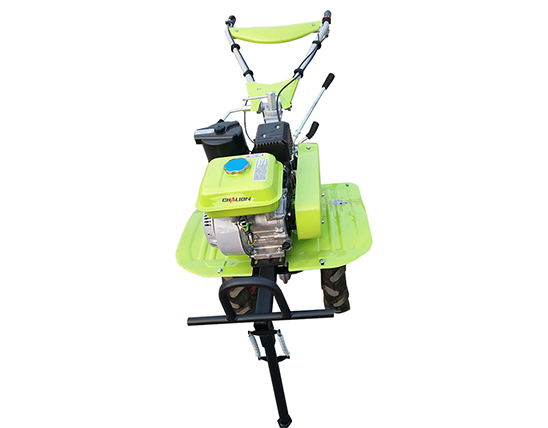

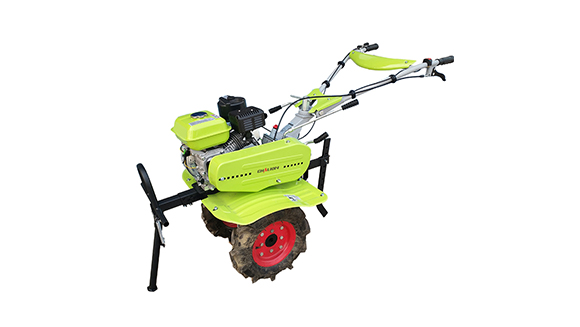

Chalion 170F Power Tiller
The Chalion 170F Power Tiller (agricultural tiller) uses 4.1kw gasoline engine power and direct connection mode, simple structure and easy to operate. Moreover, there are safety protection devices on the front and back of the machine to protect the operator with a high safety factor.
Products Description
The agricultural tiller uses 4.1kw gasoline engine power and direct connection mode, simple structure and easy to operate. Moreover, there are safety protection devices on the front and back of the machine to protect the operator with a high safety factor.
The handle can be adjusted up and down, left and right 360 ° horizontal adjustment, up and down 30° adjustment, can be adjusted freely according to personal height. No need to stop during adjustment, it can be adjusted during the work process, the operation is more convenient.
Products Parameters
| Main performance and technical specifications | |||
|---|---|---|---|
| Engine Model | 170F Gasoline engine （208ml ） | ||
| Rate Power | 4.1KW | ||
| Dimension | 1520*735*960mm | ||
| Weight | 82KG | ||
| Transmission Mode | Triangle Belt | ||
| Connection Mode | Direct connection | ||
| Main Clutch type | Tensioner | ||
| Tilling Depth | ≥100mm | ||
| Tilling width | 920mm | ||
| Operating Speed | ≧0.3m/s | ||
| Productivity | 0.1-0.2h㎡ | ||
| Fuel consumption | ≦10kg/h㎡ | ||
| Wheel Size | 400-8 | ||
-
