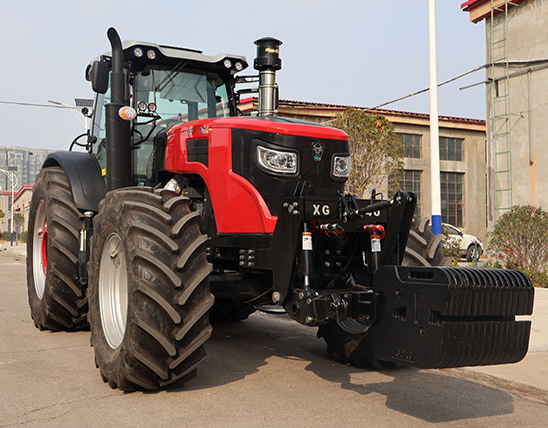

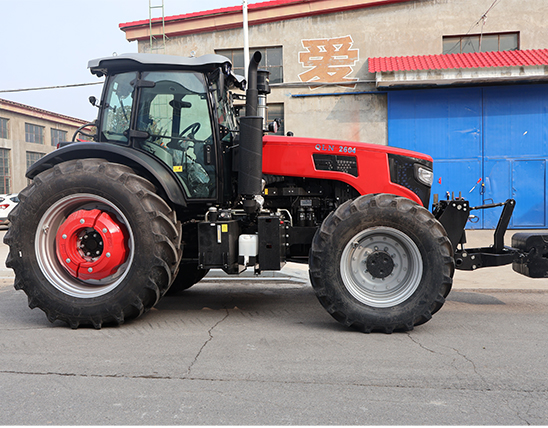

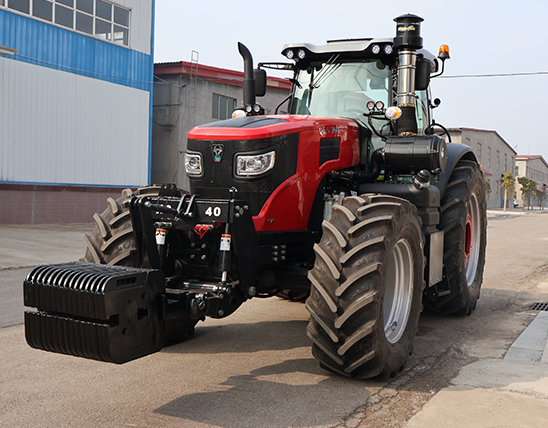

Chalion 260HP(4wd, 191KW) Wheeled Tractor
Products Description
Chalion 260HP 4WD tractor is powered by a reliable YTO 6-cylinder diesel engine, paired with a 32F+32R shuttle shift gearbox (including creep gear). Built on a heavy-duty large chassis, it delivers strong power, easy operation, and stable performance for efficient large-scale agricultural production.
Powerful & Durable: YTO 6-cylinder engine with electronic fuel system offers stable high torque; separate transmission/hydraulic lubrication systems reduce failure rates.
Flexible Control: 32F+32R synchronizer shift (with creep gear) for precise speed matching; hydraulic steering & double-disc brake ensure safe, smooth operation.
Strong Load Capacity: 8400kg heavy chassis & 440mm ground clearance handle heavy implements (ploughs, harrows, planters) and perform well in muddy/sloped fields.
Long Endurance & Comfort: 450L large fuel tank for longer continuous work; optional AC cabin with co-driver seat reduces operator fatigue.
Wide Compatibility: 8-spline PTO (540/1000rpm) works with more high-end farm implements.
Application Field (Short Version)
Large-scale Farming: Ploughing, rototilling, seeding, harvesting, and straw returning, matching large harvesters.
Heavy-duty Field Work: Deep tillage, land preparation, and combined soil treatment.
Transportation: Field logistics for agricultural materials and crop delivery.
Auxiliary Operations: Powering irrigation pumps and other industrial/auxiliary equipment.
Products Parameters
| 260HP | ||||
|---|---|---|---|---|
|
Type |
4×4 Wheeled Type |
|||
|
Dimensions |
Length×Width×Height(mm) |
5610x2820x3320 |
||
|
Wheel Tread(mm) |
Front Wheel(mm) |
2040/1900 |
||
|
Rear Wheel(mm) |
1600-1560 |
|||
|
Wheel Base |
3050 |
|||
|
Min.Ground Clearance(mm) |
440 |
|||
|
Min. Usage Mass（kg） |
With Cab(kg) |
8400 |
||
|
Front/rear ballast(kg) |
900/540 |
|||
|
Engine |
Engine brand |
YTO YM6K7LRF22/1915 |
||
|
Engine Model |
Direct-injection,water-cooled 6-cylinders diesel engine with air compressor |
|||
|
Number of Cylinder |
6 |
|||
|
Cooling System Type |
Water Cooled |
|||
|
Rated Power(kw) |
191.5 |
|||
|
Rated Speed(r/min) |
2200 |
|||
|
Fuel Tank |
Volume(L) |
450L |
||
|
Fuel system |
|
Electronic fuel system |
||
|
Clutch |
Dry-friction, single disc and two stage |
|||
|
Steering System |
Hydraulic type |
|||
|
Transmission System |
Gear Box |
32F+32R shuttle shift, wide range of gear ratios (including creep gear) |
||
|
Gear Box |
Lubrication separate from hydraulic systems.(Yes) |
|||
|
Braking System |
Static hydraulic pressure,double disc |
|||
|
Tire |
Front tyre |
600/65R28 |
||
|
Rear tyre |
710/75R32 |
|||
|
PTO Type |
8 Spline |
540/1000 |
||
|
Front axle |
Model |
GADT front axle( |
||
|
Rear axle |
Model |
Shili or Luwo |
||
|
Cabin |
|
Fan cabin,Warm cabin,Air conditioner cabin,Additional seat for assistant,Tractor driver's seat with armrest |
||
|
Hydraulic system |
|
The hydraulic system have a separate tank. |
||
|
Hydrualic adjustment type |
Forced hydraulic system, position control, floating control |
|||
|
Hydrualic autput |
Four groups of hydraulic output |
|||
|
Thrree point linkage |
Rear,three-point suspension, cat 3 |
|||
-
