Chalion 904/66.2KW Wheeled Tractor (90hp, 4WD)
CHALION 904 90HP 4WD Farm Tractor is designed for efficient plowing, land preparation and various agricultural operations. Equipped with a powerful 90HP diesel engine, 12F+12R gearbox and four-wheel drive system, it delivers strong traction, stable performance and reliable operation.
Products Description
QLN904 90HP 4WD Farm Tractor is designed for efficient plowing, land preparation and various agricultural operations. Equipped with a powerful 90HP diesel engine, 12F+12R gearbox and four-wheel drive system, it delivers strong traction, stable performance and reliable operation.
Products Use
Suitable for plowing, rotary tillage, land preparation, farm transportation and other agricultural operations.
Products Advantage
1. Powerful 90HP Engine
Strong power, stable performance and reliable operation.
2. 4WD & Differential Lock
Excellent traction and adaptability to various field conditions.
3. 12F+12R Gearbox
Flexible speed selection for different farming operations.
4. Strong Hydraulic Lifting
Over 1590 kg lifting capacity for various farm implements.
5. Easy & Comfortable Operation
Hydraulic steering and double-acting clutch for convenient handling.
6. Efficient 3-Disc Plough
900 mm working width and 250–300 mm working depth for effective land preparation.
Products Parameters
| 90HP | ||||
|---|---|---|---|---|
|
Model |
QLN904(90hp, 4WD) |
|||
|
Drive |
4WD (4X4) |
|||
|
Engine Type |
4-Stroke, Direct Injection, Water-Cooled Diesel Engine |
|||
|
Rated power/speed |
68 kW / 2300 rpm |
|||
|
Engine displancement |
5130cc/5.13 L |
|||
|
Engine Standard |
II standard |
|||
|
Horsepower |
90 HP |
|||
|
Number of cylinders |
4 |
|||
|
Fuel tank capacity |
Sufficient for 12 hours continuous operation |
|||
|
Transmission Type |
Constant Mesh |
|||
|
Differential type (front/rear) |
Closed, 4 planetary bevel gears / Closed, 4 planetary gears |
|||
|
Drive type |
Spiral bevel gear / Planetary gear |
|||
|
Speed Range |
2 - 30km/h |
|||
|
Clutch |
11 inch, double acting, semi-independent, dry clutch |
|||
|
Differential lock |
YES |
|||
|
Battery type |
Maintenance free battery, 12V, min. 120Ah |
|||
|
Hydraulic lifting cylinders |
2 pcs |
|||
|
Gearbox |
12F+12R |
|||
|
Brake Type |
Dry type, single disc type, mechanical operation |
|||
|
Steering Type |
Hydraulic Steering |
|||
|
Lifting Capacity |
Above 1590 kg |
|||
|
Front Tire Size |
9.5-20 |
|||
|
Rear Tire Size |
14.9-30 |
|||
|
Weight |
2500 kg |
|||
|
Ground clearance |
325 mm |
|||
|
Wheelbase |
2040 mm |
|||
|
Wheel track |
1300 mm |
|||
|

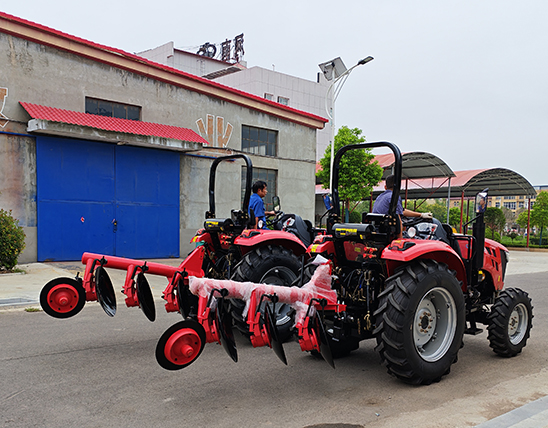

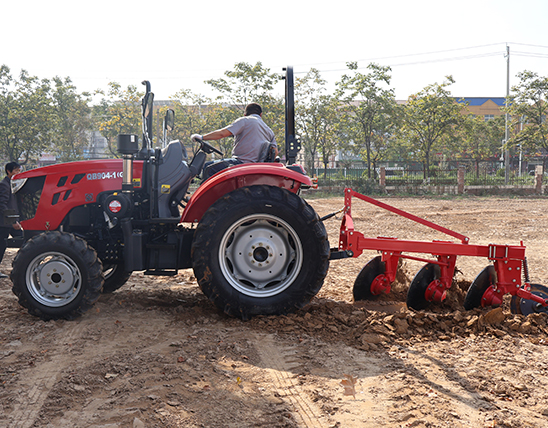

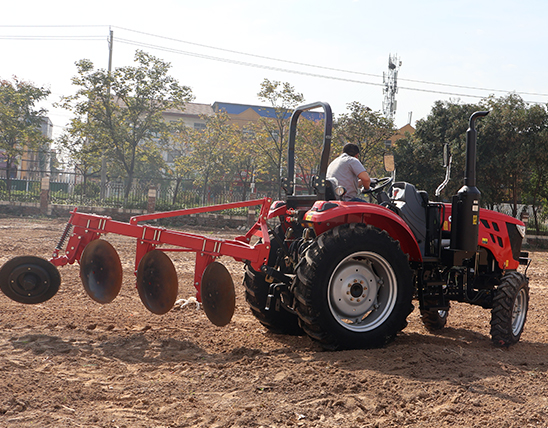

Tractor with disc plough |
|
|||
|
Type |
Disc plough |
|||
|
Disc qty |
03 |
|||
|
Working width |
0.9 m |
|||
|
Working depth |
250-300 mm |
|||
|
Linkage type |
Three-point linkage |
|||
|
Dia. of disc |
660 mm |
|||
|
Weight |
350 kg |
|||
-
