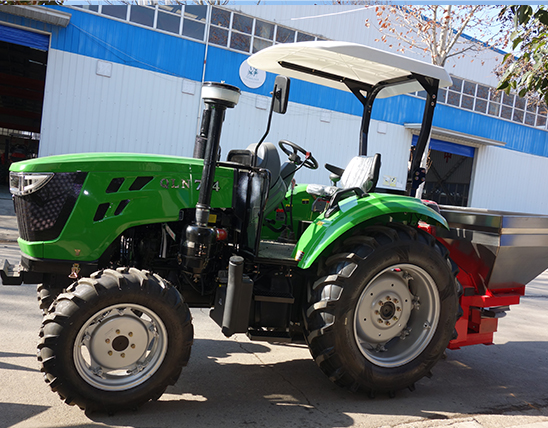

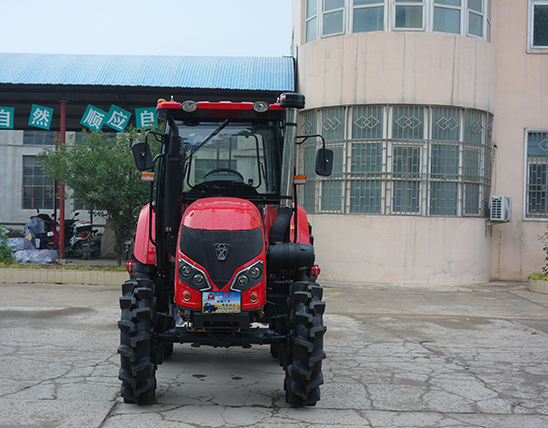

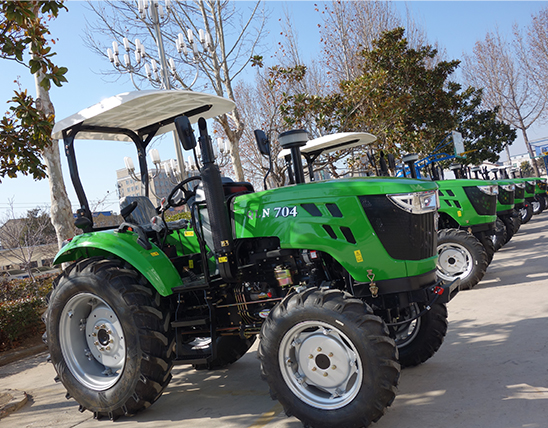

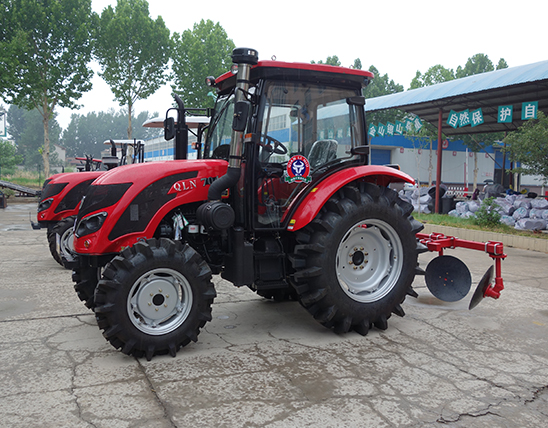

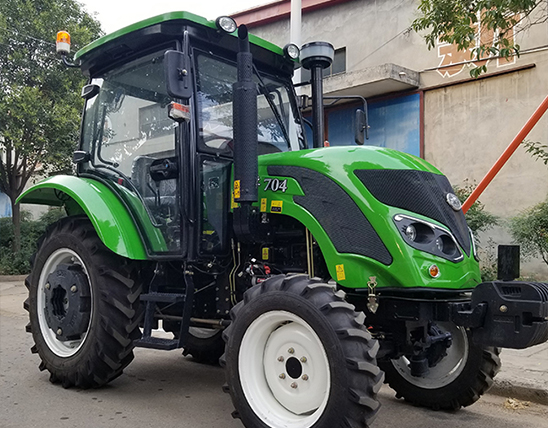

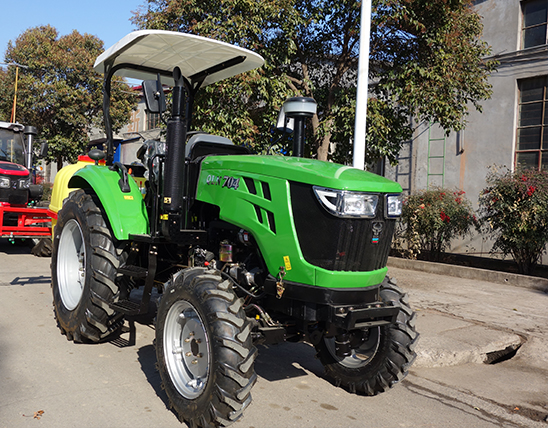

Chalion QB Series 70HP Wheeled Tractor
QB series 70HP Wheeled Tractor is belong to middle horsepower, adopts YTO high fuel efficiency diesel engine, shuttle shift 12F+12R gearbox, lower mounted fuel tank with large capacity, heavy chassis, and fast operating speed.
Products Description
QB series 70HP Wheeled Tractor is belong to middle horsepower, adopts YTO high fuel efficiency diesel engine, shuttle shift 12F+12R gearbox, lower mounted fuel tank with large capacity, heavy chassis, and fast operating speed.
Products Use
This middle horsepower tractor mostly uses in middle-size farms, And also it can use in some Mechanical engineering.
Products Advantage
-
YTO Excellent four-cylinder direct injection diesel engine with high fuel efficiency and high torque output;
+ -
Hydraulic lifting device adopts force adjustment, position adjustment, and individual control of force and position;
+ -
Dual action10 10/ 11-inch clutch for easy control, and reliable performance; Special ceramic material for friction plates with high reliability as well as low use and maintenance cost;
+ -
12F+12R shuttle -type gear shifting with quick forward and reverse has a variety of gear selections, and a reasonable velocity distribution;
+ -
A new front axle is used on the four-wheel-drive model, which can provide you reliable steering performance in harsh and paddy environments with a double steering cylinder and great waterproofness. Meanwhile, it has a minimum turning radius of 3.3m to help you operate easily in small spaces；
+ -
Beautiful and elegant, new generation streamlined shield, which meets the performance requirements of safety, anti-dust, noise reduction, and cooling perfectly.
+
Products Parameters
| 70HP | ||||
|---|---|---|---|---|
| Model | QLN-700 | QLN-704 | ||
| Engine | Rated power(kW) | 51.5 | ||
| Type | Water-cooled, in-line, four-stroke, direct injection | |||
| Rotation speed(r/min) | 2400 | |||
| Dimension | Wheel drive | 2WD | 4WD | |
| Minimum using weight (kg) | 2120 | 2360 | ||
| Overall dimension(mm) | 3980*1635*2400 | |||
| Wheel tread(mm) | Front wheel | 1300 | ||
| Rear wheel | 1300 | |||
| Wheelbase(mm) | 2010 | 2040 | ||
| Minimum ground clearance(mm) | 325 | |||
| Gearbox | 12F+12R | |||
| Tire | Front tire | 6.00-16 | 8.3-20 | |
| Rear tire | 12.4-28 | 12.4-28 | ||
| Steering type | Hydraulic power steering | |||
| Working device | PTO shaft speed (r/min) | 540/760 | ||
| Max lifting force(KN) | 12.4 | |||
| Suspension type | CategoryⅠ3-point linkage | |||
-
