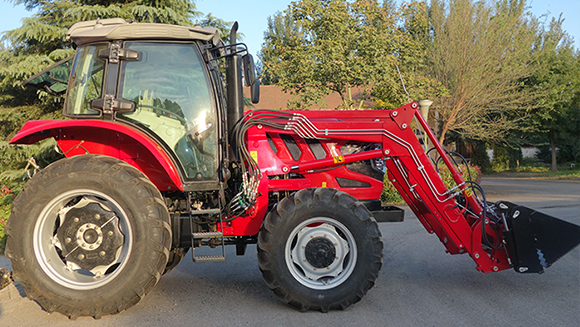

Chalion Front End Loader For 20HP-180HP Wheel Tractor
The Chalion tractor front loaders are versatile pieces of equipment for digging, grading, loading and carrying with your tractor. Chalion front end loader adopts hydraulic transmission, compact structure, flexible operation, and can be used to match 20HP-180HP wheeled tractors.
1.Chalion front end loader used in Shoveling, stacking or short-distance transportation of loose material, like mud, sand, stone or garbage.

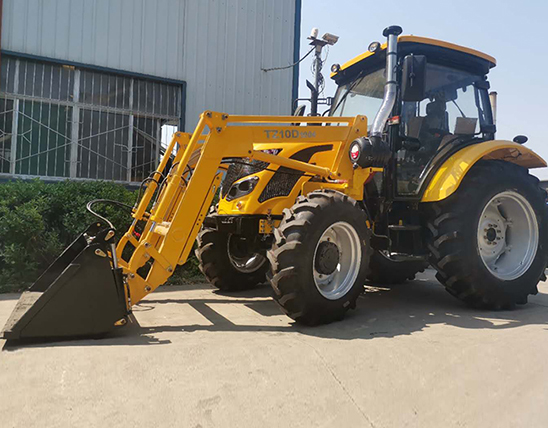

2.TZ series front end loader featured with compact structure, flexibility, convenient operation and quick mounting and dismounting.
3.The front end loader adopts hydraulic transmission, which has the characteristics of compact structure, flexibility, convenient operation, and quick loading and unloading.
4.Different work devices are optional, such as combined buckets（4 in 1 Bucket), grating cover bucket, pallet handler, timber grab and bale fork, etc, so as to accomplish different kinds of work successfully.
5.Five attaching type for Optional: There are Common model (Ordinary attaching type) and four quick attaching type: Lifting arm and column quick attaching; Lifting arm and bucket quick attaching; Complete quick attaching; Complete quick attaching+horizontal lifting and dropping.
6.Our company can manufacture full series Front end loader from Model TZ-2 to TZ-16D which match for 20HP~180HP tractor.
|Main performance and technical specifications|
|Max.Lifting Height at Implement Pivot Pin||mm||2350||2550||2740||3010||3400||3710||3970||4260|
|Ground clearance at Arm Prvot Pin||mm||1120||1200||1360||1500||1630||1780||1930||1930|
|Max.Tip in Angle||Degree||48||48||48||48||54||54||54||54|
|Tip out Angle||Degree||52||58||58||58||58||58||58||58|
|Crowd angle at lowered lift arm||Degree||140||135||135||135||135||145||145||145|
|Lifting Force at Implement Pivot Pin||Kg||1821/||2224/||2144/||2150/||1997/||2308/||2403/||2620/|
