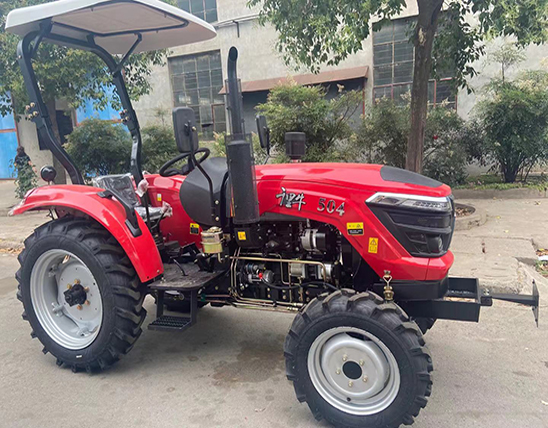

Chalion QA Series 50HP Wheeled Tractor
1) This Chalion QA Series 50HP Wheeled Tractor is suitable for market demand at home and abroad;
2) F8+R8/R2 shuttle shift, enhanced chassis;
3) These farm wheel tractors have reasonable gear distribution and are reliable in performance;
4) Low fuel consumption and large torque reserve, dynamic economy;
5) Frame-type cab, good sealing, driving safety and comfort;
6) Multi-power output, good match with farm implements to meet the multiple requirements.
Products Description
This Chalion QA Series 50HP Wheeled Tractor suitable for market demand at home and abroad, F8+R8 shuttle shift, enhanced chassis.
Products Use
Tractor for Farm usage. Equipped with various farm implements to help you do farm work, such as ploughing, planting, cultivating, etc.
Products Advantage
-
Equipped with international standard NTP 1/2 hydraulic output connectors, 1/2 way multi-valve, and hydraulic pump with output flow of 35 l/m;
+ -
The gear configurations of F8+R8/R2 make the velocity distribution reasonable to meet different operating needs;
+ -
Optional single/double-acting clutches for different needs and operations; Special ceramic material for friction plates with high reliability and low use and maintenance cost.
+ -
Center console with simple structure, high-cost efficiency, and easy maintenance, and an external differential lock is easy for maintenance;
+ -
Powered by 4-cylinders direct injection Laidong/Jiangdong engine, energy-saving, environmental protection, good stability and more advanced technology; it powered from 25HP to 40HP which can provide power up to 40HP and meet the Emission Standard of E3A and EPA Tire 4;
+ -
New designed front axle is adopted on a 4WD tractor, mid hydraulic cylinder makes the structure easier and more reliable. The tie rod is canceled to provide higher clearance and better passing ability.
+
Products Parameters
| 50HP | ||||
|---|---|---|---|---|
|
Model |
QLN-504 |
|||
|
Engine |
Rated power(kw) |
36.8 |
||
|
Type |
Vertical four-cylinder, direct injection, four-stroke, water-cooled |
|||
|
Rotation speed(r/min) |
2300 |
|||
|
Dimension |
Wheel drive |
4WD |
||
|
Minimum |
1625 |
|||
|
using weight (kg) |
||||
|
Overall dimension(mm) |
3540*1560*2340 |
|||
|
Wheel tread(mm) |
Front wheel |
1230 |
||
|
Rear wheel |
1110-1400 |
|||
|
Wheelbase(mm) |
1820 |
|||
|
Minimum ground clearance(mm) |
280（lower edge of front drive axle） |
|||
|
Gearbox |
8F+8R/2R shuttle shift |
|||
|
Tire |
Front tire |
7.50-16 |
||
|
Rear tire |
11.2-28 |
|||
|
Steering type |
Hydraulic power steering |
|||
|
Working device |
PTO shaft speed (r/min) |
540/720 or 540/1000 |
||
|
Max lifting force(KN) |
11.3 |
|||
|
Suspension type |
CategoryⅠ3-point linkage |
|||
-
Chalion QB Series 75HP Wheeled Tractor
Chalion QB Series 75HP Wheeled Tractor is belong to middle horsepower, adopt YTO high fuel efficiency diesel engine, shuttle shift 12F+12R gear box, lower mounted fuel tank with large capacity, heavy chassis, fast operating speed.
Learn More -
Chalion QG Series 200HP Wheeled Tractor
QG series(QLN-2004) equipped with Weichai brand 6 cylinders diesel engine, with turbocharger and intercooling system, gearbox 16F+16R with synchronizer shift, high torque output with low fuel consumption, support three pairs hydraulic output, can provide strong power to the heavy implements.
Learn More -
QC Series QLN-2104B Wheeled Tractor
This 210hp tractor is belong to our QC series tractor, it is with YTO engine,and Germany LUK 14-inch double-acting clutch, And it torque coefficient is large and the transmission ability is strong.and for this tractor clutch,we use Hydraulic boost clutch, it is easy for operator to operate
Learn More -
QLN-121(12hp) Walking Tractor
QLN 12hp walking tractor is a precious working tool in agriculture and gardening. It is mainly used for soil tilling, and in combination with the series of available attachments, the walking tractor can be used to carry out a number of different works.
Learn More -
Chalion QK Series 100HP Wheeled Tractor
This Chalion QK Series 100HP Wheeled Tractor is big horsepower agriculture tractor. The tractors have compact structure, convenient operation, flexible steering, easy maintenance. 16F+8R gear box, hydraulic steering, dual action clutch.
Learn More
