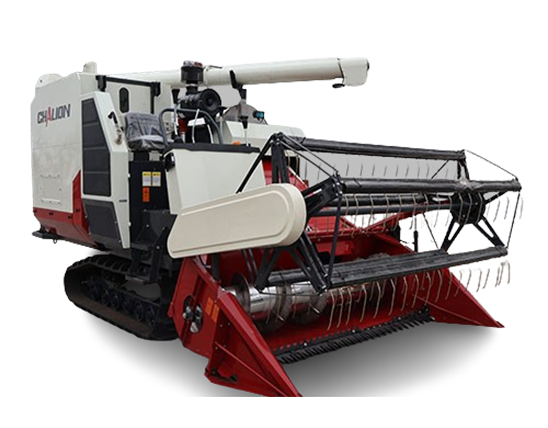

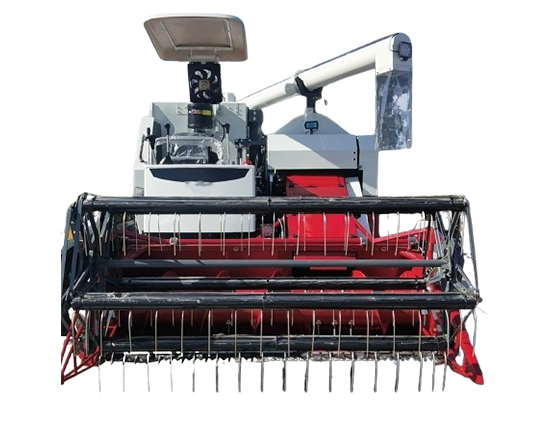

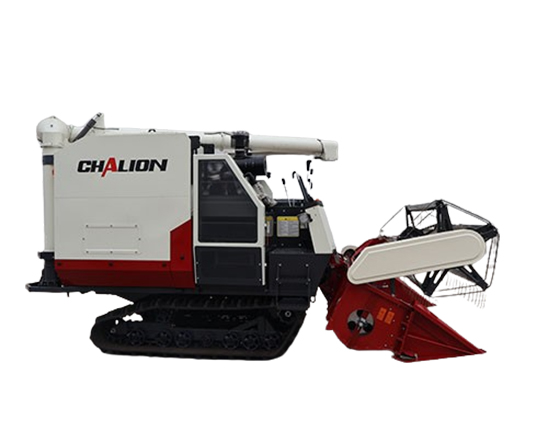

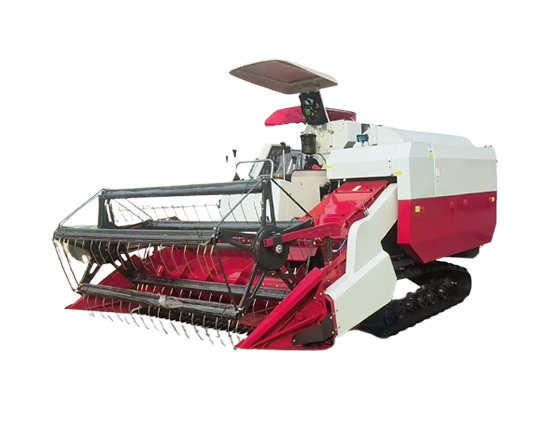

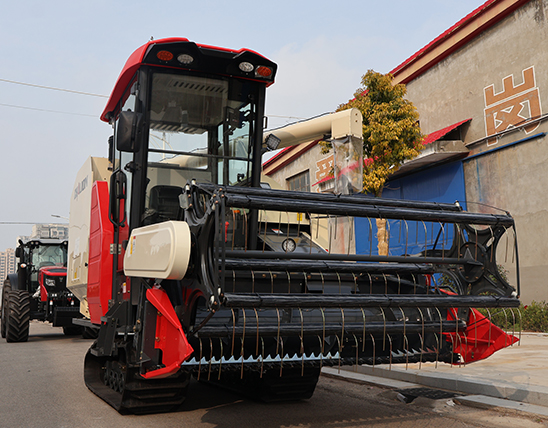

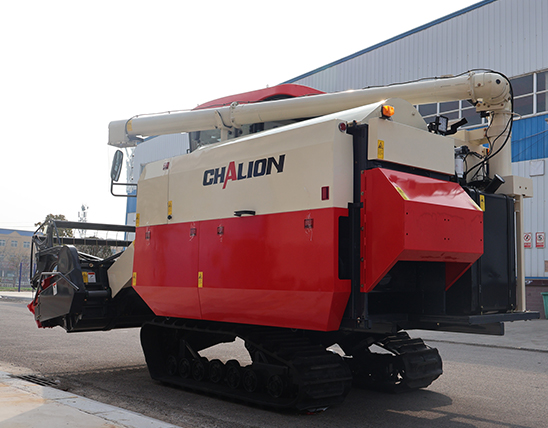

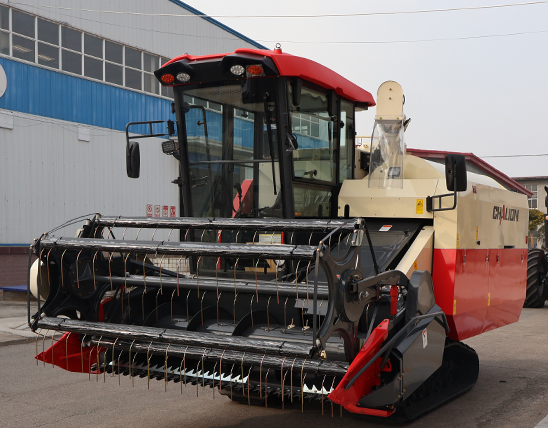

Chalion 4LZ-6.0 Combine Harvester
1. 360° unloading charge brings convenience when unloading.
2. 120hp engine, and 56cc HST are used for making sure of work efficiency.
3. Fuel tank capacity 240L can meet the whole day’s work.
4. Structure is compact, working is more flexible.
ProductsDescription
1. 360° unloading charge brings convenience when unloading.
2. 120hp engine, and 56cc HST are used for making sure of work efficiency.
3. Fuel tank capacity 240L can meet the whole day's work.
4. Structure is compact, working is more flexible.
Products Parameters
| Main performance and technical specifications | |||||
|---|---|---|---|---|---|
| Model | 4LZ-6.0 | ||||
| Structural style | Crawler-type full feeding model | ||||
| Dimension (length*width*height) | 5,310 ×2,790 ×2,910 | ||||
| Total weight (cabin/canopy) (kg) | 3,650 | ||||
| Ground clearance (mm) | 350 | ||||
| Production efficiency (hm2 ／h) | 0.45 ～0.85 | ||||
| Fuel consumption (kg/hm2) | ≤32 | ||||
| Feed quantity(kg/s) | 6 | ||||
| Matching Power | Manufacturing factory | Changchai 4G36V16，120HP | |||
| Structural style | 4-cylinder, water cool, turbocharge | ||||
| Rated power/Max. power (HP) | Rated 120HP STAGE II | ||||
| rated speed (r/min) | 2,600 | ||||
| Fuel Tank capacity (L) | 240 L | ||||
| Track | Distance X Section X width Stronger rollers (mm) | 90mm×56×500mm 90mm×56×550mm FM WORLD type FULLY Interchanged |
|||
| Track distance btw. two guage (mm) | 1,250 | ||||
| Theory operating speed (km/h) | 0 ～7.2 | ||||
| Type | Eccentric Spring-tooth | ||||
| Reel | Diameter(mm) | 900 | |||
| Plate qty. | 5 | ||||
| Cutter bar lifting device type | Hydraulic lifting jack cylinders | ||||
| Cutter width (mm) | 2200mm | ||||
| FM WORLD type FULLY Interchanged | |||||
| Cutting bar | Type | Screw and toothed | |||
| Diameter*length(mm) | Rear thresher | 620×2,210 | |||
| FM WORLD type FULLY Interchanged | |||||
| Rethresher type | Pin tooth type | ||||
| Concave grid | Sieve type | ||||
| HST & Gearbox model（ Same as Gam) | 56cc+95 | ||||
| Grain unloading method | 360° unloading charge / Lower air filter with cap on grain tank | ||||
| Grain tank capacity(m³) | 1.7 | ||||
| Crops | Rice ,Wheat ,Cole,Soybean,Corn(replace parts) | ||||
-
