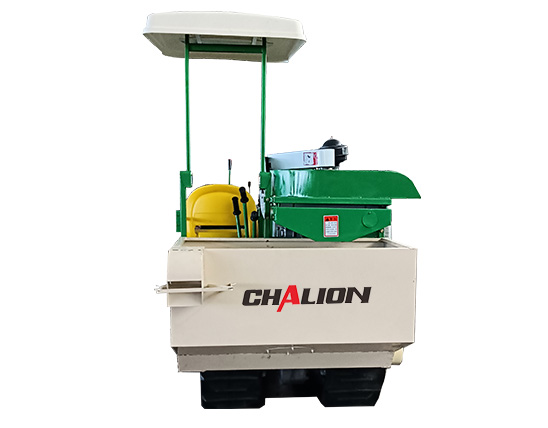

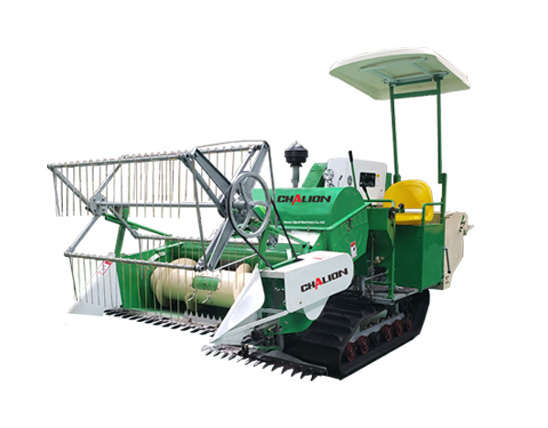

Chalion 4LZ-1.5 Mini Rice Harvester
4LZ-1.5mini rice harvester is a crawler-riding rice and wheat combine harvester. Widened header increases hourly feed and work efficiency. Multiple gears can be switched freely.
ProductsDescription
4LZ-1.5 mini rice harvester is a crawler-riding rice and wheat combine harvester. Widened header increases hourly feed and work efficiency. Multiple gears can be switched freely.
ProductsAdvantage
Heightened feed roller baffle to reduce spilling The header is lowered by 8 cm, making it easy to harvest dwarf rice Feeding conveyor trough hinge structure to avoid regurgitation and conveying jamming
High horsepower, more fuel-efficient, more durable, diesel engine harvesting, threshing, walking more efficient
Low grass discharge design, smoother grass discharge Gradient design of the threshing drum, threshing does not jam Progressive grid screens reduce spilling and lower impurity content
Products Parameters
| Main performance and technical specifications | |||
|---|---|---|---|
|
Type |
4LZ-1.5 Full-feeding crawler type |
||
|
engine power rating(kw) |
16.18 |
||
|
Engine rated speed(r/min) |
2200 r/min |
||
|
Net working hours(h㎡/h) |
0.08～0.16 |
||
|
Dimensions (length * width * height)mm |
3320*1510*2420（work status） |
||
|
Whole machine weight(Kg) |
1000 |
||
|
Swath(mm) |
1200 |
||
|
Feed quantity(t/h) |
3.6 |
||
|
Minimum ground clearance(mm) |
200 |
||
|
Cutter type |
standardⅡ |
||
|
Cutting table and mixing type |
Horizontal screw push type |
||
|
Wheel type |
Eccentric elastic tooth |
||
|
Dial diameter(mm) |
740 |
||
|
The number of dial crops(per) |
4 |
||
|
Threshing cylinder type |
Transverse axial flow type |
||
|
The threshing cylinder size (diameter * length) mm |
400*820 |
||
|
Cylinder speed(r/min) |
890 |
||
|
Cylinder number(per) |
1 |
||
|
Concave plate screen type |
Fixed grid format |
||
|
Fan type |
Mixed flow< axial compressor + centrifugation > |
||
|
Fan diameter(mm) |
620 |
||
|
Fan speed(r/min) |
600～950 |
||
|
Number of fans(per) |
1 |
||
|
Track size (pitch x pitch number x width) |
90mm*36pitch*280mm |
||
|
Track gauge(mm) |
650 |
||
|
Transmission type |
Mechanical transmission 2×（3+1） |
||
|
Brake type |
Built in wet friction plate |
||
|
Receive food pattern |
manual work |
||
|
Earth pressure(kpa) |
≤20 |
||
|
Minimum transition radius |
mm(left) |
2200 |
|
|
mm(right) |
2100 |
||
-
Chalion 4LZ-0.6 Mini Rice Harvester
Chalion 4LZ-0.6 mini rice harvester is a full-feed self-propelled crawler-type small combine harvester, which can be used for rice and wheat harvesting in hilly areas. This machine uses a one-lever control for easy operation. High operating efficiency, using gasoline power, energy saving, and environmental protection.
Learn More -

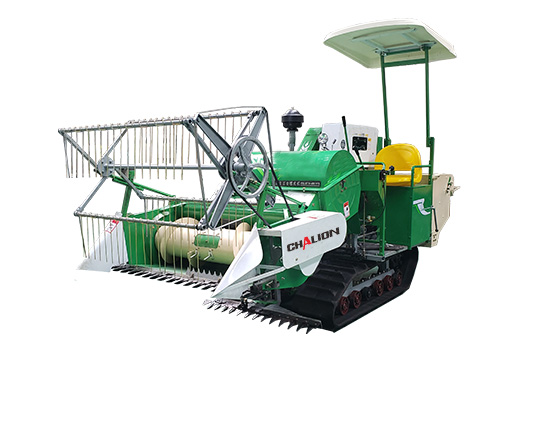

Chalion 4LZ-1.1 Mini Rice Harvester
4LZ-1.1 mini rice harvester is a crawler riding rice and wheat combine harvester. Widened header increases hourly feed and work efficiency. Multiple gears can be switched freely.
Learn More -
Rice Transplanter
The Chalion brand walking rice transplanter is mainly for the rice planting, it suitable for small paddy field, it exported to West Africa, South-east Asian countries, for example, Nigeria, Ghana, Indonesia, Malaysia, Philippines and so on.
Learn More -
Chalion Corn Harvester
Chalion Corn harvester is an agricultural tool that uses machinery to harvest corn stalks according to agronomic requirements when the corn is mature or close to maturity.
Learn More -

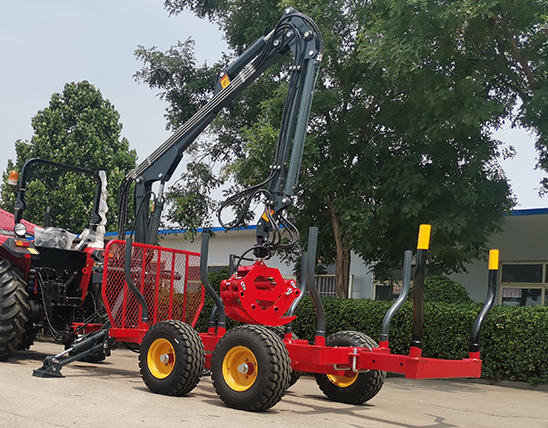

Chalion Log Trailer With Crane
Chalion Log Trailer With Crane for tractors and timber trailer combination, our log trailer is durable, agile, and stable, it can also work on difficult terrains. A good control system creates safety. Wide range of accessories. A low center of gravity creates balance. Can be attached to ATV, truck, car, or tractor.
Learn More -

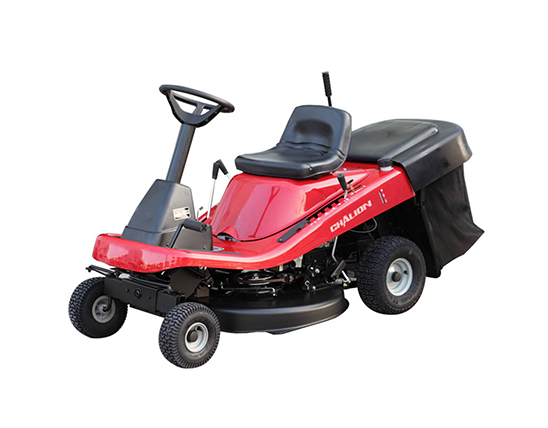

Riding Mower
