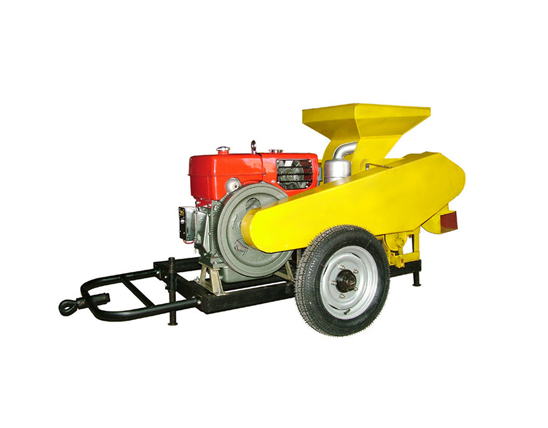

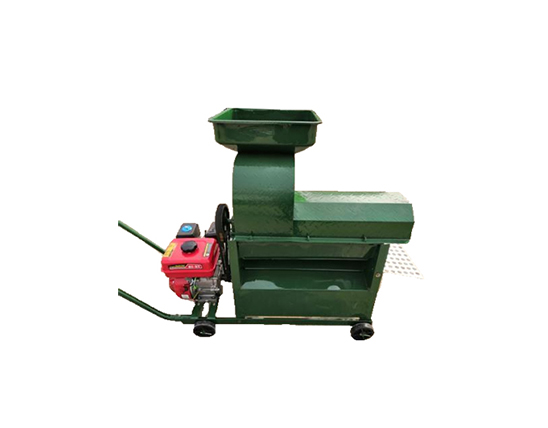

Chalion 5TYM Corn Thresher
The small household corn thresher can be matched with different power types to meet the needs of different customers and has high production efficiency. The corn has a high cleaning rate and little damage. It can be used with up to 12-horsepower diesel engines.
Products Advantage
The small household corn thresher can be matched with different power types to meet the needs of different customers and has high production efficiency. The corn has a high cleaning rate and little damage. It can be used with up to 12-horsepower diesel engines.
Products Parameters
| Chalion Main performance and technical specifications | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Model |
5TYM-850 |
5TYM-650 |
|||||||||||
|
Structure type |
Spiral tooth type |
swing hammer |
|||||||||||
|
Weight(Kg) |
120（Without engine） |
50 |
|||||||||||
|
Engine |
Diesel Engine |
Single-phase motor/Diesel/Gasoline engine |
|||||||||||
|
Power(kW/hp） |
5.5-7.5/12-18 |
2.2-3/5-8 |
|||||||||||
|
Size(cm) |
127*72*100 |
90*60*92 |
|||||||||||
|
Productivity(t/h) |
4-6 |
1-2 |
|||||||||||
|
Peeling and threshing(t/h) |
2-3 |
/ |
|||||||||||
| Chalion Main performance and technical specifications | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Model |
5TY-0.5 |
5TY-4.5 |
5TY-850 |
||||||||||
|
Efficiency(kg/h) |
500-2000 |
2500-4500 |
≥5000 |
||||||||||
|
Threshing rate(%) |
≥97 |
||||||||||||
|
Breakage rate(%) |
≤2 |
||||||||||||
|
Rotation speed of main shaft(r/min) |
1000 |
||||||||||||
|
Total weight(kg) |
230 |
330 |
360 |
||||||||||
|
Matched power(hp) |
8 |
15 |
15 |
||||||||||
|
The items selectable |
Matched for tractor diesel engine or electric motor |
||||||||||||
-
