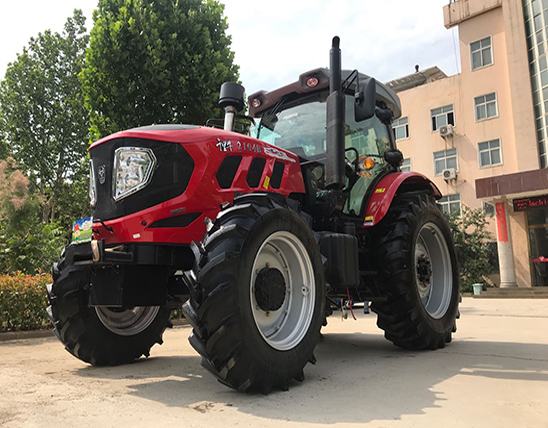

Chalion QC Series 210HP Wheeled Tractor
This 210hp tractor is belong to our QC series tractor, it is with YTO engine, and Germany LUK 14-inch double-acting clutch, And it torque corfficient is large and the transmission ability is strong. and for this tractor clutch, we use Hydraulic boost clutch, it is easy for operator to operate
Products Description
This 210hp tractor is belong to our QC series tractor, it is with YTO engine, and Germany LUK 14-inch double-acting clutch, And it torque coefficient is large and the transmission ability is strong. and for this tractor clutch, we use Hydraulic boost clutch, it is easy for operator to operate
Products Use
For this big horse power tractor mostly use in big size farm, with the big engine, tractor is more stronger. And also it can use at some of the Mechanical engineering.
Products Advantage
-

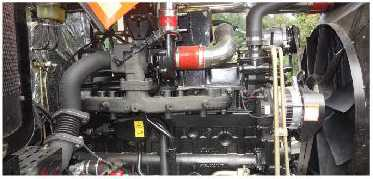

Equipped with Weichai Power variable frequency common rail engine, strong power, optimized adjustment of engine curve, lower fuel consumption.t of engine curve, lower fuel consumption.
+ -
Optional German LUK clutch, high reliability; universal joint four-wheel-drive front driveshaft, large transmission torque; hydraulic system independent oil, high cleanliness, low failure rate.
+ -

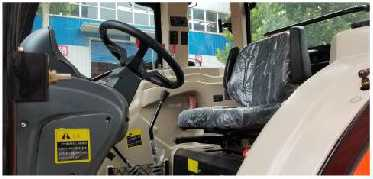

Using 16F+8R meshing shuttle type gear shift, reasonable speed matching, good working adaptability, optional crawler gear.
+ -

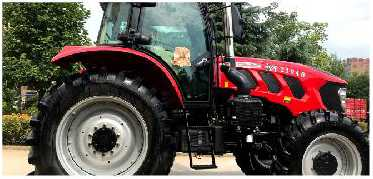

240 liters of double under-mounted fuel tanks, long continuous operation time, and high operating efficiency. Full hydraulic steering system, easy to drive, flexible steering, front and rear adjustable steering wheel, more comfortable.
+ -

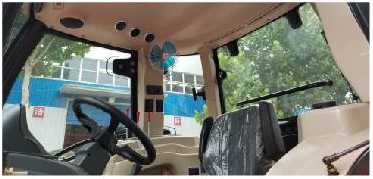

Upgraded luxurious air-conditioned cab with new interior, new streamlined hood, more beautiful and more comfortable.
+ -

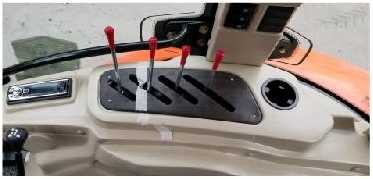

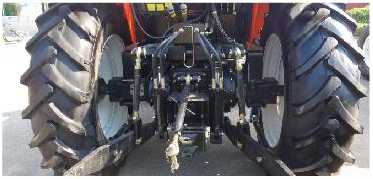

Double pressure hydraulic lifter, equipped with 325/328 gear pump; 3 sets of hydraulic multi-way valves are provided to meet the power requirements of various machines.
+
Products Parameters
| 210HP | |||
|---|---|---|---|
| Model | QLN-2104B | ||
| Engine | Rated power(kw) | 155 | |
| Type | Direct-injection,water-cooled 6-cylinders diesel engine | ||
| Rotation speed(r/min) | 2200 | ||
| Dimension | Wheel drive | 4*4 | |
| Minimum using weight (kg) | 5800 | ||
| Overall dimension(mm) | 5240**2345*2920 | ||
| Wheel tread(mm) | Front wheel | 1850-1940 | |
| Rear wheel | 1870-1996 | ||
| Wheelbase(mm) | 2727 | ||
| Minimum ground clearance(mm) | 480 | ||
| Gearbox | 16F+8R | ||
| Tire | Front tire | 14.9-28（13.6-24/18.4-34 ） | |
| Rear tire | 18.4一38（14.9-26/18.4-34 ） | ||
| Steering type | Hydraulic power steering | ||
| Working device | PTO shaft speed (r/min) | 760/850 | |
| Max lifting force(KN) | 37.2 | ||
| Suspension type | 3 Point linkage（CAT.3,Draft,position adjustable and Floating control） | ||
-
