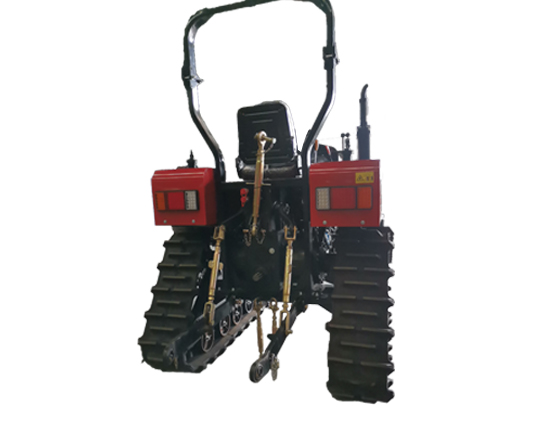

QLN 802HP Crawler Tractor

QLN crawler tractor series QLN-802 belong to medium and high horsepower, adopt shuttle 8F+8R gearbox, load large-capacity double fuel tanks, heavy chassis and fast running speed.

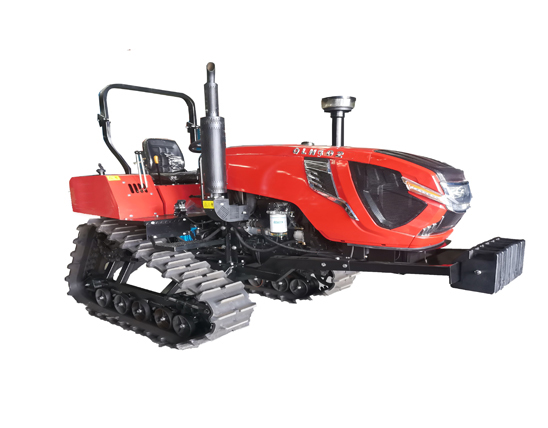

The 90HP crawler tractor uses 4-cylinder engine, which can be used for paddy field farming. It is equipped with agricultural machinery such as rotary tillers and ridgers.

info@qln-tractor.com 8618236900192

Products Description

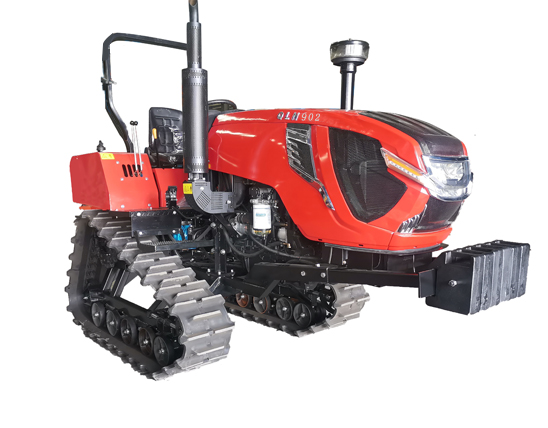

QLN crawler tractor series (QLN-802/902) belong to medium and high horsepower, adopt shuttle 8F+8R gearbox, load large-capacity double fuel tanks, heavy chassis and fast running speed.

The 90HP crawler tractor uses 4-cylinder engine, which can be used for paddy field farming. It is equipped with agricultural machinery such as rotary tillers and ridgers.

Products Advantage

It is equipped with Dongfanghong engine with strong power;

Traction force, high traction power, can be matched with various agricultural machinery operations;

It is equipped with 8+8 speed gearbox, wide speed range, and high farmland operation efficiency;

Using hydraulically controlled differential steering without braking, 360-degree in-situ steering without muddy;

Using mechanical transmission, high transmission efficiency, low fuel consumption, especially suitable for field ploughing, rotary tillage and leveling operations;

Beautiful appearance, wide field of vision;

Steering wheel steering control, the control is more precise and comfortable;

The ground pressure is small, the ground clearance is high, and the passing performance is good, realizing protective tillage;

Compact structure, low center of gravity of the whole machine, and good safety.

Products Parameters

80HP
Model number QLN-802
Size Length × width × height (mm) 3690×1770×2400
Weight (Kg) 2660
Minimum ground clearance (mm) 420
Engine Model number YD4EZ80C1
Form Turbocharged
Rated power (kW) 58.8
Fuel oil Diesel oil
Calibration speed (r/min) 2400
Start method Electric start
Steering Brake system Steering system type Planetary differential steering
Brake system type Wet friction
Drive train Clutch type Monolithic single acting
Gearbox type (4+4) *2 mechanical composition
Gearbox shift mode Gear shift
Walking Department Frame type Rigid frame
Track pitch × number of sections × width 54*90*400
Theoretical speed of each gear (km/h) Low: 1.47; 2.16; 3.52; 4.62; High: 5.48; 8.05; 13.09; 17.18
Hydraulic suspension system type Low: 1.171.71; 2.79; 3.66; High: 4.35; 6.38; 10.8; 13.63
Working device Adjustment method Semi-split
PTO shaft type Force position adjustment
Power output shaft speed (r/min) Rear, non-independent type 1
Power output shaft spline and outer diameter mm 720/1000
Theoretical speed of each gear (km/h) 8/38
