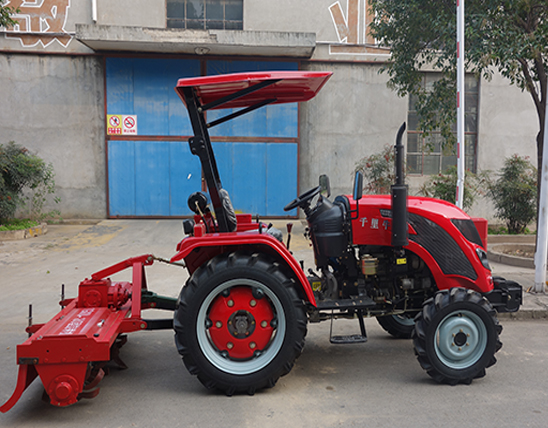

Chalion QY Series 35HP Wheeled Tractor

1. This series wheeled tractors are equipped with creeping shift, double stage clutch, these are much easier to use with farm implements.

2. 4WD agriculture tractors are equipped with Laidong, Yangdong, Quanchai or Xichai brand water cooled engine.

3. Farm tractors could be matched with various farm implements, like front end loaders and backhoe, to help you do various agriculture work.

4. Equipped with hydraulic power pumps, it provides stronger power for tractors linkage device.

5. F8+R2 creep gearshifts

info@qln-tractor.com 8618236900192
Send Email Inquiry Now
Product Description Product Parameters Related Products

Products Description

This series 35hp wheeled tractors are equipped with creeping shift, double stage clutch, these are much easier to use with farm implements



Products Use

For this small horse power tractor mostly use in small size farm, And also it can use at some of the Mechanical engineering.

Products Advantage



  • Equipped with international standard NTP 1/2 hydraulic output connectors, 1/2 way multi-valve and hydraulic pump with output flow of 35 l/m;

    +

  • The gear configurations of F8+R2 makes that the velocity distribution is reasonable to meet different operating needs;

    +

  • Optional single/double-acting clutches for different needs and operation; Special ceramic material for friction plates with high reliability as well as low use and maintenance cost.

    +

  • Center console with simple structure, high cost efficiency and easy maintenance and an external differential lock is easy for maintenance;

    +

  • Powered by 4-cylinders direct injection Laidong/Yangdon/Xichai engine, energy-saving, environmental protection, good stability and more advanced technology; it powered from 25HP to 50HP which can provide power up to 50HP;

    +

  • New designed front axle is adopted on 4WD tractor, mid hydraulic cylinder makes the structure easier and more reliable.The tie rod is canceled to provide higher clearance and better passing ability.

    +

Products Parameters

35HP
Model QLN-354
Rated Power (KW) 25.7
Engine Model LD/Yangdong/Xichai, 3 cylinders
Rotation speed (r/min) 2300
Structure Weight (KG) 1050-1060
Length× Width× Height (mm) 3215*1550*2230(To Sunroof)
Tyre Front/Rear 6.50-16/9.5-24
PTO Model& Size 135 Rectangle Spline with 6 teeth
Speed(r/min) 540,540/760, 540/720, 540/1000
Gear Box F8+R2/ (4+1)*2
Max.Traction Force (KN) 6.66 6.86
