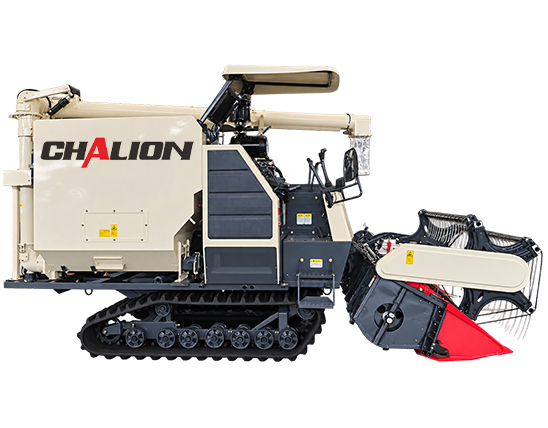

Chalion 4LZ-6.0P Combine Harvester
4LZ-6.0P crawler full-feeding combine harvester powered by 120HP Changchai engine, features 6.0kg/s feeding rate, 360° swing auger fast unloading.
Products Description
1. Strong Power: 120HP Changchai 4-cylinder water-cooled turbocharged engine for stable and durable power output.
2. High Working Efficiency: 6.0kg/s feeding capacity with an efficiency of 0.5–0.85hm²/h, suitable for large-area operation.
3. Clean Threshing: 2220mm wide cutter bar with pin-tooth threshing and sieve cleaning system, low grain loss.
4. Great Terrain Adaptability: 350mm high ground clearance crawler chassis, excellent performance on wet and muddy fields.
5. Fast Unloading: 1.7m³ grain tank with 360° swing auger, completing rapid unloading in 2 minutes.
6. Multi-Crop Use: Ideal for rice, wheat and barley; compatible for corn harvesting .
7. Energy Saving: Optimized fuel consumption ≤32kg/hm², matched with reliable HST transmission system.
Products Parameters
| Main performance and technical specifications | |||||
|---|---|---|---|---|---|
|
Mode |
/ |
4LZ-6.0P |
|||
|
Structural style |
/ |
Crawler-type full feeding model |
|||
|
Dimension (length*width*height) |
|
5,310 ×2,790 ×2910(sunshade) |
|||
|
Total weight |
kg |
3650 |
|||
|
Ground clearance |
mm |
350 |
|||
|
Track Gauge |
mm |
1250 |
|||
|
Production efficiency |
hm2 /h |
0.5 ～0.85 |
|||
|
Fuel consumption |
kg/hm2 |
≤32 |
|||
|
Working speed |
Km/h |
LOW:0-4.5 km/h |
|||
|
Medium:0-6.0km/h |
|||||
|
High:0-7.2km/h |
|||||
|
Feed quantity |
kg/s |
6.0 |
|||
|
Matching power |
Manufacturing factory |
/ |
Changchai 4G33TC, 120HP(sunshade) |
||
|
Structural style |
/ |
4-cylinder, water cool, turbocharge |
|||
|
Rated power/Max. power |
HP |
Rated 120HP STAGE II |
|||
|
rated speed |
r/min |
2,600 |
|||
|
Displacement |
L |
3.6 |
|||
|
Fuel Tank capacity |
L |
240 L |
|||
|
Track |
Distance X Section X width Stronger rollers |
mm |
90mm×56×500mm |
||
|
Track distance btw. two guage |
mm |
1,250 |
|||
|
Theory operating speed |
km/h |
0 ～7.2 |
|||
|
Reel |
Type |
/ |
Eccentric Spring-tooth |
||
|
Diameter |
mm |
900 |
|||
|
Plate qty. |
|
5 |
|||
|
Cutter bar lifting device type |
/ |
Hydraulic lifting jack cylinders |
|||
|
Cutter width |
mm |
2220mm |
|||
|
Reel Rotation speed |
|
25-60rpm |
|||
|
Cutting bar |
Type |
/ |
Screw and toothed |
||
|
Diameter*length |
Rear thresher |
mm |
620×2,210 |
||
|
Sorting plate width*length |
mm |
778* 1783 |
|||
|
Concave area |
m2 |
2.25-2.5 |
|||
|
Concave area |
m2 |
2.3 |
|||
|
Rethresher type |
/ |
Pin tooth type |
|||
|
Concave grid |
/ |
Sieve type |
|||
|
HST & Gearbox model（ Same as Gam) |
/ |
HYTEK 56cc+100 |
|||
|
Grain unloading method |
/ |
360° unloading charge |
|||
|
Grain tank capacity |
m³ |
1.7m³ |
|||
|
Grain Unloading |
|
Top-mounted, Swing-type Discharge Auger |
|||
|
Front horizontal auger total length |
mm |
2242 |
|||
|
Rear horizontal auger total length |
mm |
1510 |
|||
|
Discharge time |
mins |
2 |
|||
-
