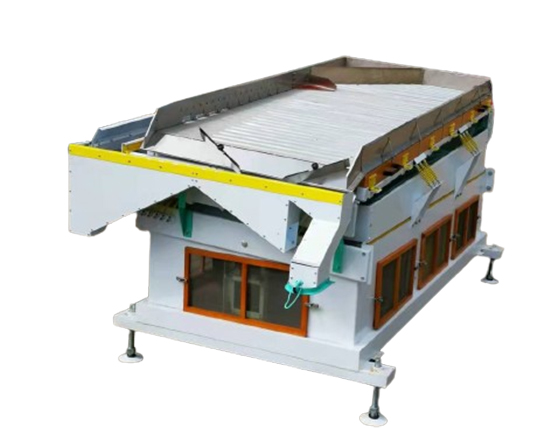

Chalion Positive Gravity Separator

The gravity separator is a key tool for processing seed and agricultural byproducts and it can be used for the processing and selection of many kinds of dry particle materials.

info@qln-tractor.com 8618236900192

Products Description

The gravity separator is a key tool for processing seed and agricultural byproducts and it can be used for the processing and selection of many kinds of dry particle materials. The materials generate specific gravity segregation under the dual action of aerodynamic force and vibration friction. By adjusting the wind pressure, amplitude and other technical parameters, the high gravity material will sink to the bottom and move up under the vibration of the screen surface. The low gravity material will float and move down to achieve accurate cleaning.

Products Advantage

1. Larger output: small restrictions by the site, general processing can be used, the processing volume is larger;

2. Higher purity: equipped with different specifications of the sieve, remove grass branches, twine, imperfections and tooth decay and crushed particles, etc.;

3. Variable frequency adjustment: frequency converter adjusts the vibration frequency, by adjusting the air volume of the wind chamber, it can select all kinds of materials;

4. Stable and reliable: sheet metal parts imported laser under the materialcan ensure precision; the whole machine bolt connection can reduce welding deformation.

Scope of application

The machine is suitable for processing seed and agricultural byproducts. It has good selecting effect on all kinds of cereal seeds, miscellaneous grains and beans, melon seeds, etc. And it can remove rotten seeds, moth bitten seeds, black-powder disease, inferior grain, grain with buds, seed with glumes, stones, etc. After cleaning, weight per thousand seed, bud rate, cleanliness and consistency will be greatly improved.


Products Parameters

Main performance and technical specifications

Device name

Model

Size of sieve surface
(mm)

Power

(kW)

Max

Productivity

(t/h)

Weight of the total machine



(Kg)

Exterior

Size

(L×W×H)(mm)

Gravity separator

QLN-5A

3150x1380

9

4

1360

3870x1720x1700

QLN-5B

3150x1380

9.25

5

1420

3870x1845x1700

QLN-10

3580x1520

17.75

8

1700

4300x2300x1750

QLN-15

4000x1520

20.25

10

1750

4750x2300x1800
